Q: the wireless module doesn’t seem to work at all. I have tried many firmwares and it will not recognize. do you know of a specific fw that will fix this? or is this a bad board/module?

[BPI-R4 8GB RAM]BPI-R4-8G-BE1350-WIFI_MP4_1-SDK-20240318 (Only for BPI-R4-8G 8G RAM version, cannot use on BPI-R4-4G 4G ram version)

Google Drive: https://drive.google.com/file/d/1PZf443Yu1KdiUiBOlF89s9PVyaW30SmU/view?usp=sharing

[ BPI-R4 4GB RAM ]OpenWRT MTK MP3.1 wifi SDK or MT76 wifi driver for BE14000 Wifi Card

Google Drive: BPI-R4-WIFI-SDK - Google 雲端硬碟

Note:

  1. MTK vendor’s MP3.1 wifi image package name: BPI-R4-BE1350-WIFI_MP3_1-SDK-20240202.zip
  2. opensource MT76 wifi image package name : BPI-R4-BE1350-WIFI_MT76-20240202.zip
  3. MTK vendor’s MP3.1 wifi driver sourcecode can’t be open source. only release Image. But supply all MT76 wifi driver sourcecode.(support Quectel RM500U-CN & RM520N-GL 5G Modules, EC25 EM05 4G Modules)

Brush system link:

Note: You can only burn NAND via SD card. If you need burn emmc, you need to boot via NAND.

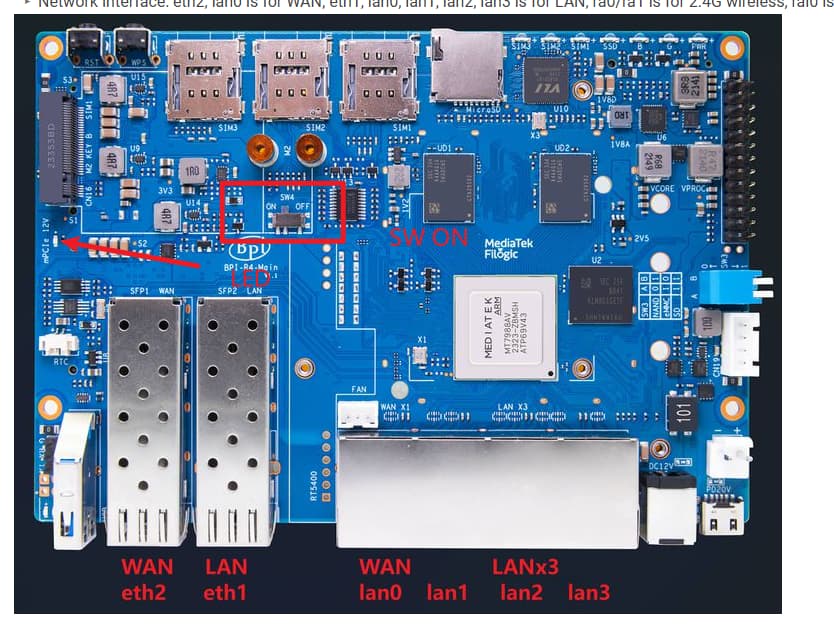

Please make sure the WiFi power is turned on after reflashing the system.

image834×628 95.2 KB

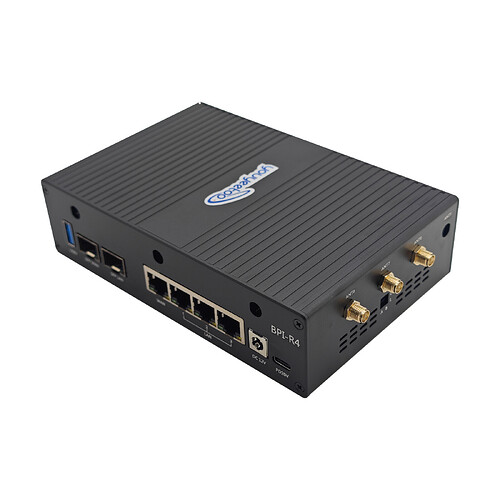

You may consider purchasing one of our assembled R4 WIFI7 kits if you fail to solve the problem.

You can also find it on Amazon.

2

How to reflash BPI-R4.

Note: You can only burn NAND via SD card. If you need burn emmc, you need to boot via NAND.

EMMC

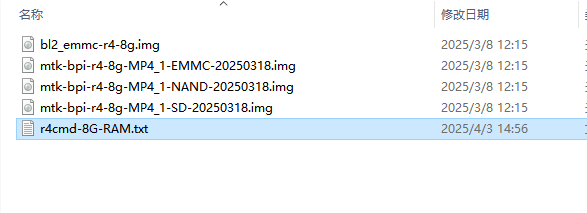

Put the BPI-R4 firmware on a USB stick.

image587×213 8.45 KB

mount /dev/sda1 /mnt/sda1 ;
echo 0 > /sys/block/mmcblk0boot0/force_ro ;
dd if=/your path/8G/bl2_emmc-r4-8g.img of=/dev/mmcblk0boot0 ;
dd if=/your path/mtk-bpi-r4-8g-MP4_1-EMMC-20250318.img of=/dev/mmcblk0 ;
mmc bootpart enable 1 1 /dev/mmcblk0 ;

For example, My firmware is stored on a USB drive, and the mount directory for the USB drive is usually /mnt/sda1. Since I have distinguished between 4G and 8G firmware, the final form is

mount /dev/sda1 /mnt/sda1 ;
echo 0 > /sys/block/mmcblk0boot0/force_ro ;
dd if=/mnt/sda1/8G/bl2_emmc-r4-8g.img of=/dev/mmcblk0boot0 ;
dd if=/mnt/sda1/8G/mtk-bpi-r4-8g-MP4_1-EMMC-20250318.img of=/dev/mmcblk0 ;
mmc bootpart enable 1 1 /dev/mmcblk0 ;

mount /dev/sda1 /mnt/sda1 ;
echo 0 > /sys/block/mmcblk0boot0/force_ro ;
dd if=/mnt/sda1/4G/bl2_emmc-r4.img of=/dev/mmcblk0boot0 ;
dd if=/mnt/sda1/4G/mtk-bpi-r4-MP4_1-EMMC-20241216.img  of=/dev/mmcblk0 ;
mmc bootpart enable 1 1 /dev/mmcblk0 ;
3

NAND Flash

mount -t vfat /dev/sda1 /mnt
mtd erase /dev/mtd0
dd if=/mnt/sda1/4G/mtk-bpi-r4-MP4_1-NAND-20241216.img of=/dev/mtdblock0

mount -t vfat /dev/sda1 /mnt
mtd erase /dev/mtd0
dd if=/mnt/sda1/8G/mtk-bpi-r4-8g-MP4_1-NAND-20250318.img of=/dev/mtdblock0
